Choke Manifold

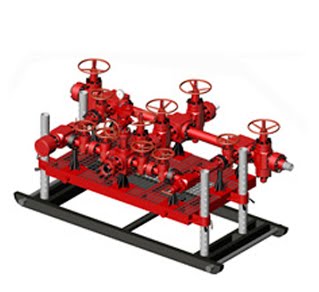

Choke Manifold is adopted to execute new drilling-well’s technique of balance pressure. Choke Manifold can avoid pollution of oil-layer and improve the speed of drilling and control blowout effectively. The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components. We supply various choke manifold from 2-1/16”~4-1/16”, with working pressure 2,000PSI~20,000PSI as per API SPEC 16C /6A.
Specification:
| Choke Manifold Model | Working Pressure Psi (MPa) | Main Dia. In (mm) | Side Dia. In (mm) |
|---|---|---|---|
| CM140 | 20,000 (140) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78) , 4-1/16(103) |
| CM105 | 15,000(105) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78) , 4-1/16(103) |
| CM70 | 10,000(70) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78) , 4-1/16(103) |
| CM35 | 5,000(35) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) |
| CM21 | 3,000(21) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) |
Kill Manifold
Kill manifold is necessary equipment in well-control system to pump drilling fluid into well barrel or inject the water into wellhead. It consists of check valves, gate valves, pressure gauges and line pipes. We supply various kill manifold from 2-1/16”~4-1/16”, with working pressure 2,000PSI ~20,000PSI as per API SPEC 16C /6A.
Specification:
| Kill Manifold Model | Working Pressure Psi(MPa) | Main Dia. In (mm) | Side Dia. In (mm) |
|---|---|---|---|
| KM140 | 20,000 (140)) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78) |
| KM105 | 15,000(105) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78)) |
| KM70 | 10,000(70) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/16(78), 4-1/16(103) |
| KM35 | 5,000(35) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) |
| KM21 | 3,000(21) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) | 2-1/16 (52), 2-9/16(65), 3-1/8(80), 4-1/16(103) |
